Part 1: Fun with Filters
In this part, we will build intuitions about 2D convolutions and filtering.
Part 1.1: Finite Difference Operator
Initially, we apply finite difference operators \(D_x\) and \(D_y\) to compute the partial derivatives of an image. The resulting gradient magnitude is then used to generate an edge-detection image by applying a threshold.
Original Image
\(G_x\)
\(G_y\)
Gradient Magnitude \(G_m\)
Binary Gradient \(G_m\) (threshold = 0.3)
Part 1.2: Derivative of Gaussian (DoG) Filter
To address the noise issues observed with simple finite difference operations, we introduced Gaussian smoothing. A Gaussian filter, designed by convolving a 1D Gaussian kernel with its transpose to form a 2D Gaussian kernel, was used to preprocess the image.
Blurred Image with filter
\(G_x\) with Gaussian Smoothing
\(G_y\) with Gaussian Smoothing
Gradient Magnitude \(G_m\) with Gaussian Smoothing
Binary Gradient \(G_m\) with Gaussian Smoothing (threshold = 0.1)
From the above results, it is evident that preprocessing the image with Gaussian blur filter giving us a smoother and less noisy image, while also rendering the edges thicker and more distinct
We also created the Derivative of Gaussian filters by directly convolving the Gaussian kernel with \(D_x\) and \(D_y\). We can see the results below are the same as the results obtained above.
DoG Filter in X-direction
DoG Filter in Y-direction
\(G_x\) wih DoG
\(G_y\) with DoG
Gradient Magnitude \(G_m\) with DoG
Binary Gradient \(G_m\) with DoG(threshold = 0.1)
Part 2: Fun with Frequencies!
Part 2.1: Image "Sharpening"
I first applied a Gaussian blur to each color channel. Then to enhance the edges, I added the difference between the original and blurred image back to the original. I used an alpha parameter to control how sharp the image gets and saved the results with different levels of sharpness for comparison.
Original Image
Sharpened Image with alpha=1
Sharpened Image with alpha=3
Sharpened Image with alpha=5
Original Image
Sharpened Image with alpha=1
Sharpened Image with alpha=3
Sharpened Image with alpha=5
Blurring then sharpen
Blurred Image
Sharpened blurred Image with alpha=1
Sharpened blurred Image with alpha=3
Sharpened blurred Image with alpha=5
When I tried to blur the image first and then sharpened it, the results were not as good as sharpening the original image. Many detail information was lost in the blurring process.
Part 2.2: Hybrid Images
In this part of the assignment, I created hybrid images using the method outlined in the SIGGRAPH 2006 paper by Oliva, Torralba, and Schyns. Hybrid images are designed to change in appearance depending on the viewing distance. The concept is based on the idea that high-frequency details dominate when viewed closely, while from a distance, only the low-frequency, smoother parts of the image are visible. By combining the high-frequency details of one image with the low-frequency content of another, I generated hybrid images that produce different perceptions depending on how far the viewer is from the image.
Derek and Nutmeg
Low Frequency Image
High Frequency Image
Hybrid Image
Golden and Bull
Low Frequency Image
High Frequency Image
Hybrid Image
Oski and Happy-death (Favorite)
This is the bayfiled baby mask from the movie Happy Death Day. When I first saw Oski, I thought of this. Sorry! lol
Low Frequency Image
High Frequency Image
Hybrid Image
The effect is not very good, probably because the teeth of the mask is too bright.
Frequency Analysis
Oski fft
Oski low pass fft
Happy death fft
Happy death high pass fft
Hybrid image fft
Bells and Whistles

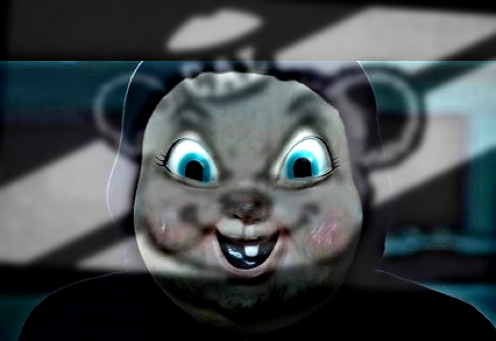

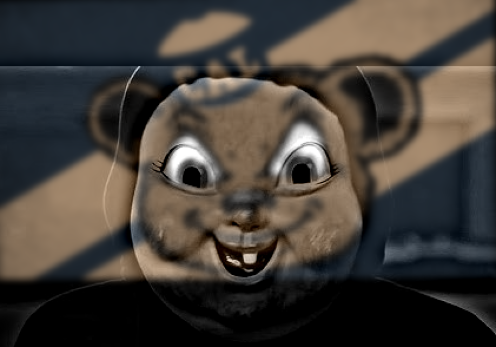

I experimented with using color to enhance the image by applying it separately to the high-frequency and low-frequency components, as well as to both combined. Overall, I think images with both colored look the best.
Gray Image
Oski (low frequency) colored
Happy death (high frequency) colored
Both colored
Part 2.3: Gaussian and Laplacian Stacks
Gaussian Stack of Apple
Gaussian Stack of Orange
Laplacian Stack of Apple
Laplacian Stack of Orange
Blending
I applied Gaussian and Laplacian stacks to the "Oraple" image to recreate the results shown in Figure 3.42 of *Computer Vision: Algorithms and Applications* (2nd Edition) by Richard Szeliski, page 167.
Level 0
Level 1
Level 2
Level 3
Levels Combined
Part 2.4: Multiresolution Blending (a.k.a. the oraple!)
Orange and Apple => Oraple
Apple
Orange
Mask
Oraple
Deadpool + Wolverine => Wolpool
Deadpool
Wolverine
Mask
Wolpool
Banana + Shiba => Shinana (Favorite One)
Shiba (狗)
Banana (香蕉)
Mask
Shinana (狗蕉 :>)
Level 0
Level 1
Level 2
Level 3
Levels Combined
Reflection
The project is pretty fun! I learned a lot about the image filtering and frequency manipulation techniques. It is pretty cool to blend images and create hybrid images by using Gaussian and Laplacian stacks.
